Countersunk Head Head Screw Threading Machine
Specification Parameters
Model | Diameter Range | Max. Blank Length | Max. Thread Length | Capacity | Main Motor | Height Of Die | Oil Motor | Feed Motor | Packing Volume | NW |
(mm) | (mm) | (mm) | (pcs/min) | (KW) | Pocket(mm) | (KW) | (KW) | (cm) | (KG) | |
3H30A/B | 2-3.5 | 30 | 30 | 230-270 | 1.5 | 25*30*70/80 | 0.18 | 0.37 | 150*91*140 | 570 |
4H45A/B | 2.5-4 | 45 | 40 | 180-230 | 2.2 | 25*45*76/90 | 0.18 | 0.4 | 170*125*150 | 850 |
4H55A/B | 3-5 | 55 | 50 | 160-200 | 3 | 25*55*85/100 | 0.18 | 0.5 | 172*130*150 | 1170 |
6H55A/B | 4-6 | 50 | 45 | 120-160 | 4 | 25*50*110/125 | 0.18 | 0.37 | 185*125*150 | 1400 |
6H70B | 4-6 | 70/85 | 70 | 120-160 | 5.5 | 25*70*110/125 | 0.18 | 0.6 | 195*145*160 | 1500 |
6H105B | 4-8 | 105/125 | 100 | 120-140 | 5.5 | 25*105*110/125 | 0.18 | 0.6 | 200*160*160 | 1700 |
6H40BL | 4-8 | 40 | 40 | 60 | 5.5 | 40*40*235/260 | 0.18 | 0.5 | 234*140*160 | 2500 |
8H80B | 5-8 | 80 | 75 | 90-120 | 7.5 | 30*80*150/170 | 0.37 | 0.6 | 245*150*160 | 3100 |
8H105B | 5-10 | 105/125 | 100 | 90-120 | 7.5 | 30*105*150/170 | 0.37 | 0.6 | 244*170*160 | 3200 |
8H150B | 5-10 | 150/200 | 150 | 90-110 | 11 | 30*150*150/170 | 0.37 | 0.8 | 245*190*170 | 3300 |
10H105B | 6-10 | 105/125 | 100 | 90-110 | 11 | 30*105*150/170 | 0.37 | 0.8 | 250*160*170 | 3500 |
12H150B | 8-14 | 150/200 | 150 | 75 | 15 | 40*150*190/210 | 0.37 | 0.8 | 315*195*170 | 4400 |
12TH150B | 8-14 | 150/200 | 150 | 75 | 15 | 40*150*190/210 | 0.37 | 0.8 | 304*200*185 | 5200 |
14H105B | 8-14 | 105 | 100 | 75 | 15 | 40*150*190/210 | 0.37 | 0.8 | 315*195*170 | 4600 |
16H150B/C | 10-18 | 150/250 | 150 | 45-50 | 22 | 45*150*235/260 | 0.36 | 1 | 363*215*200+160*160*190 | 12300 |
20H150B/C | 16-22 | 150/250 | 150 | 35-45 | 30 | 50*150*285/310 | 0.36 | 2 | 410*215*200+160*160*190 | 14700 |
24H150C | 20-25 | 150/250 | 150 | 42 | 37 | 50*150*380/420 | 0.36 | 4 | 420*225*224+160*160*190 | 19000 |
IVITAL GROUP, specialize in the design and production of high-quality Screw Threading Machines. With over 20 years of experience in the industry, we have
honedour expertise to deliver reliable and precise threading solutions for a wide range of applications.
Our Screw Threading Machine is capable of producing screws in diameters ranging from 2mm to 25mm, with a maximum length of 250mm. This versatile
machine is equipped with threading rollers that are professionally designed to ensure the highest quality threads on each and every screw produced.
At IVITAL GROUP, we take pride in the meticulous assembly of our threading machines. Our team meticulously inspects the assembly of mobile and fixed
boards multipletimes to ensure that they meet the highest technical standards. This rigorous process guarantees the durability and precision of our machines,
giving our customers the confidence they need to rely on our products for their threading needs.

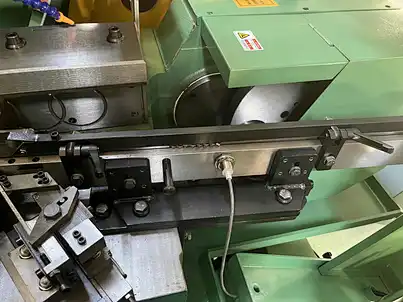

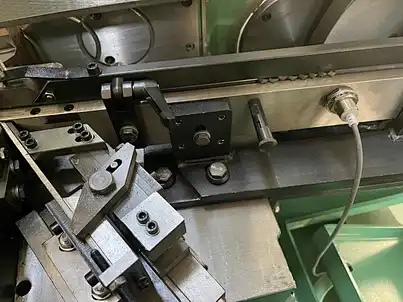

In addition to our high-quality assembly process, our Screw Threading Machine is equipped with a dedicated feeding system that is tailored to the specific
characteristics of theproductsbeing produced. This ensures a smooth and efficient threading process, leading to optimal output and minimal downtime.
Whether you are in need of a Bolt Threading Machine, Screw Threading Machine, or a Fastener Threading Machine, IVITAL GROUP has the solution for
you. With our commitment to excellence and our proven track record of delivering top-notch threading machines, you can trust that our products will meet
and exceed your expectations.
Choose IVITAL GROUP for all your screw threading needs, and experience the difference that quality and expertise can make. We are dedicated to
providing the best threading solutions for our customers, and we look forward to serving you with our exceptional products.
